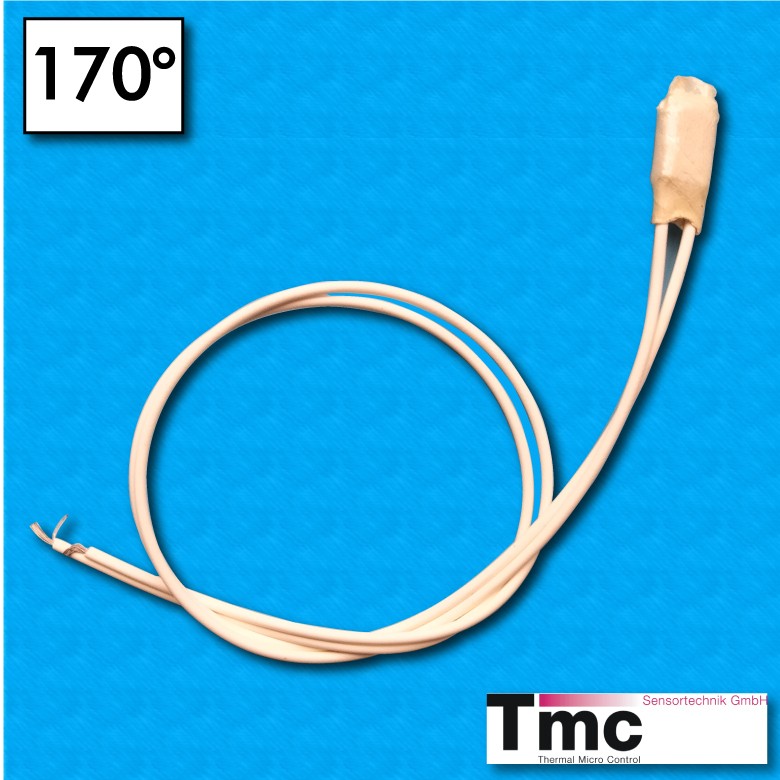

Thermal protector C1B - Temperature 170°C - FEP cables 300/300 mm - Rated current 2,5A
search
  • Thermal protector C1B - Temperature 170°C - FEP cables 300/300 mm - Rated current 2,5A

Thermal protector C1B - Temperature 170°C - FEP cables 300/300 mm - Rated current 2,5A

€8.25

Product code: PTC1-170-300300-FE9

Quantity Price per piece
1-9 8,25 €
10-19 7,70 €
20-29 6,05 €
30-39 4,95 €
40+ 4,40 €

Volume discounts

Quantity Unit price You Save
10 €7.70 Up to €5.50
20 €6.05 Up to €44.00
30 €4.95 Up to €99.00
40 €4.40 Up to €154.00
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC1-170-300300-FE9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
170°C
Reset temperature
130°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
300/300
Cable type
FEP
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
No
Approval
CQC
UL
VDE
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C1B-170B-300/300-FE9L25-05G
