Descrizione

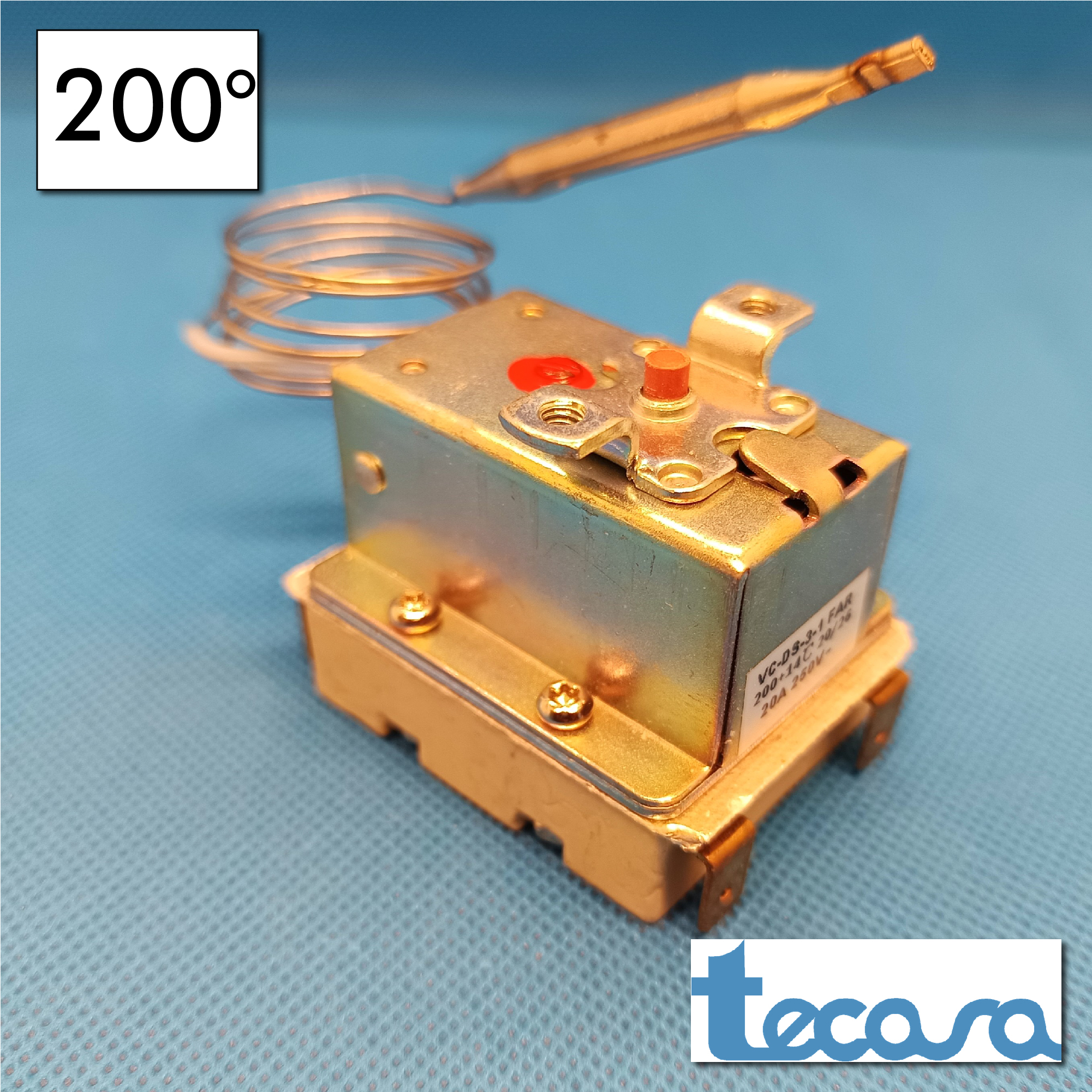

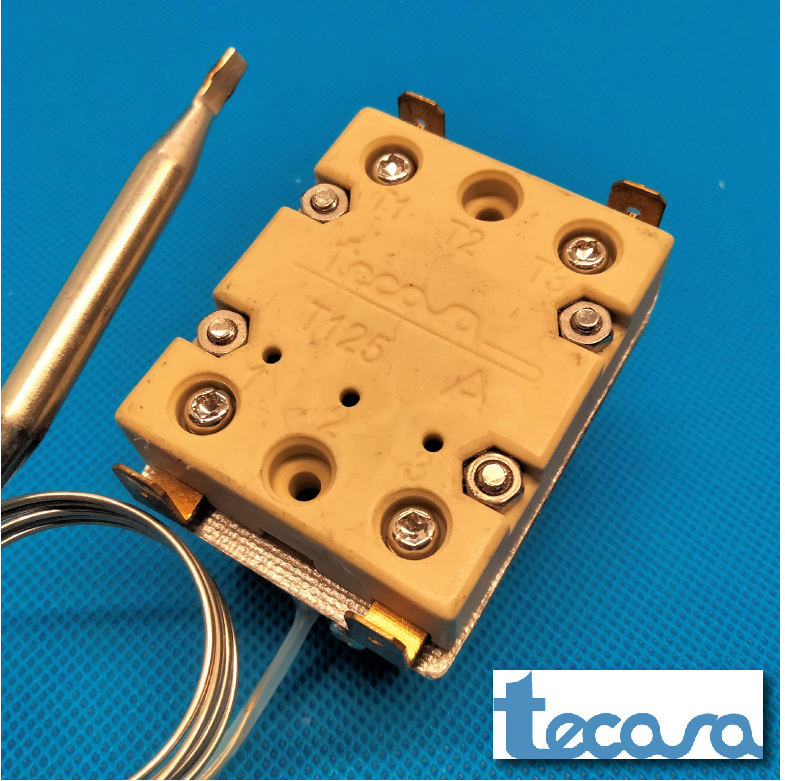

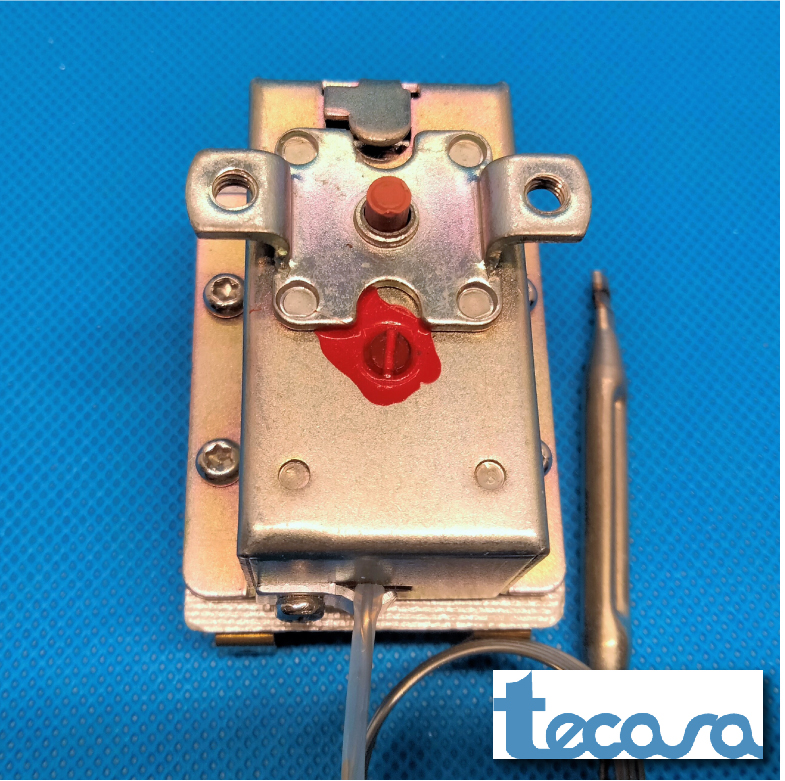

The adjustable bulb thermostat is a component for regulating and controlling temperature, with a working range, and thus a minimum and a maximum temperature, which are adjusted either at the user's choice by turning a knob, or already set for operation by the manufacturer.
This type of thermostat consists mainly of four parts: the sensor or bulb, the capillary, the thermostat body, and the adjusting shaft.
- SENSOR: also called "bulb", is the part responsible for sensing temperature and is placed at the point where this function is required. The interior is filled with a liquid that expands its volume with increasing temperature.
- CAPILLARY: is a small tube, inside of which the expanding fluid flows and connects the sensor to the thermostat body.
- THERMOSTAT: E’ il corpo in cui convergono l’alberino di regolazione, il capillare collegato alla valvola (punto terminale del capillare), i contatti che danno la continuità elettrica fino a che non si aprono interrompendola, e la valvola ad espansione collegata al capillare.
- ALBERIN: is the tool by which you can choose and adjust the thermostat tripping temperature to your liking.
To learn more, click on the links to our articles:
- BULB THERMOSTATS
- CYCLES: THE LIFE OF A THERMOSTAT
- BATCH OF PRODUCTION
- SPST TO 3PST
- WHAT IF THE ROOM TEMPERATURE IS TOO HIGH?
- SECURITY ASSURANCES
- THERMOSTATS FOR OVENS
- THREE-POLE SAFETY THERMOSTATS APPROVED UL
